DC10-SI set prewired

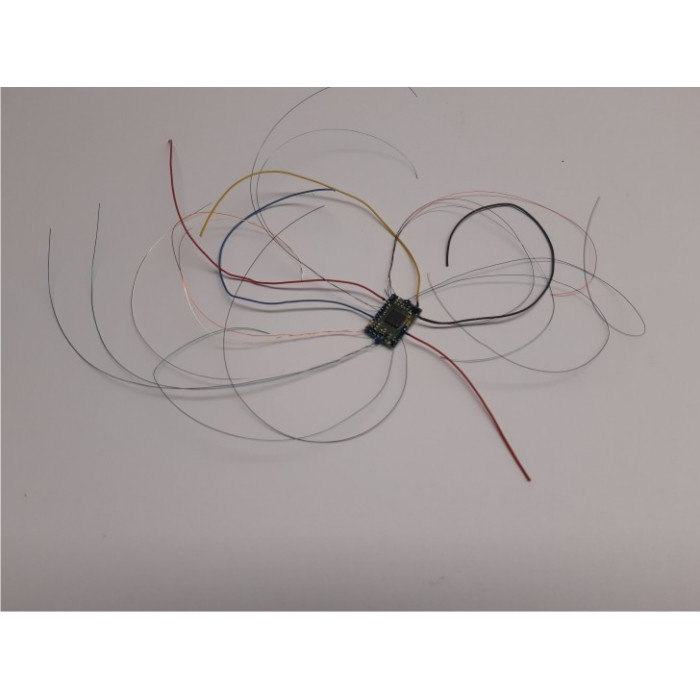

Set DC10-SI decoder features (enamle and PVC) wires for a standard vehicle. This kit is designed specifically for those who dread the solder to the decoder. Wired LEDs and Update Connector are not included and have to be ordered optional.

Specifications:

 DC10-SI 1.2 to 2.4 Volt (3,6Volt) output approximately 4 Volt

The set includes the following components:

The DC07-SI decoder board with integrated voltage converter and IR receiver


With pre-mounted enamelled wires for:

Photo Transistors receivers for the Anti-Collision System (purple and green)
Headlights (black)
Turn right direction indicator (orange)
Direction indicators left (yellow)
Brake light (violet)
Tail lights (blue)
IR LEDs for Anti-Collision System (Green)
Connection of the update connector (green, orange, violet, yellow, green, blue)

PVC wires addition, there are:
Battery (red)
Motor (yellow)
Reed contact (blue)
Mass (black)
+ Output for LEDs (red-short)

If you want more or fewer connections as option: send an email with your requirements.

The wiring diagrams can be found here:  Aansluitingen.pdf
