DC10-SI set for bus

Set DC10-SI decoder specially for the conversion of a bus, incl. connected LEDs

Specifications:

 DC10-SI 1.2 to 2.4 Volt output approximately 4 Volt

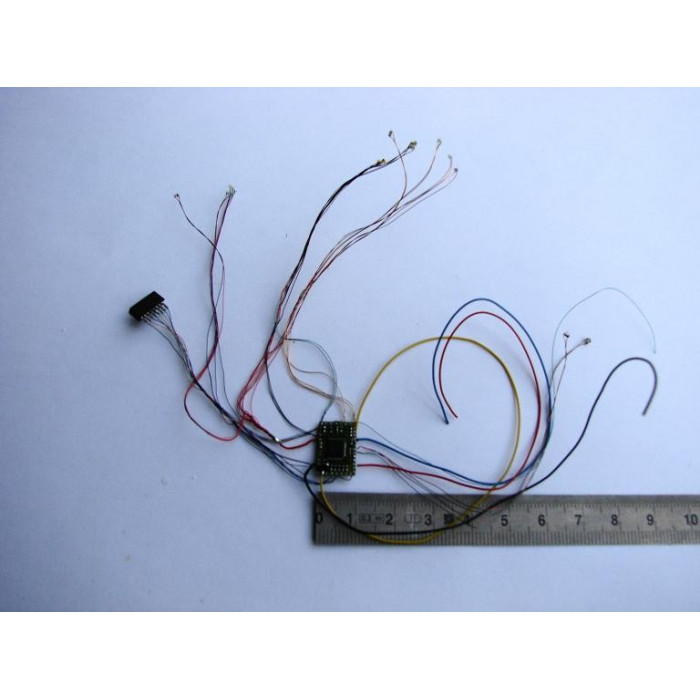

The set includes the following components:

The DC10-SI decoder board with integrated voltage converter and IR receiver

On the front:

• 2 Photo Transistors 0603 receivers for the Anti-Collision System
• 2 white LEDs for the headlights
• 2 yellow LEDs for the indicators

On the back:

• 2 Yellow LEDs for the indicators
• 2 red LEDs for brake lights
• 2 red LEDs for the rear lights
• 2 IR LEDs for Anti-Collision System

The parts are all connected by means of enamel wire. A test drive can therefore be made quickly.

As options are recommended:

For addressing the built-in automatic function:

HG1 Hall sensor (for installation in the bus) and 2x magnet 5x3 mm (for installation in the street)

and / or

A function module with IR LEDs for control of lighting , direction and speed,

and / or

DCC system with Progset: IR LEDs for controlling the vehicle by DCC station or by PC software.

and / or

DCC central DC-Car Booster with IR LEDs for long-distance control over several meters with optional PC control, herfor you need the LCIR receiver in he vehicle.

or

PC Transmittor with IR LEDs for long-distance control over several meters directly from a PC, herfor you need the LCIR receiver in he vehicle.

The wiring diagrams can be found here: Aansluitingen.pdf
