DC10-SI set for lorry

Set DC10-SI decoder specially for the conversion of a lorry, incl. connected LEDs

Specifications:

 DC10-SI 1.2 to 2.4 Volt output approximately 4 Volt

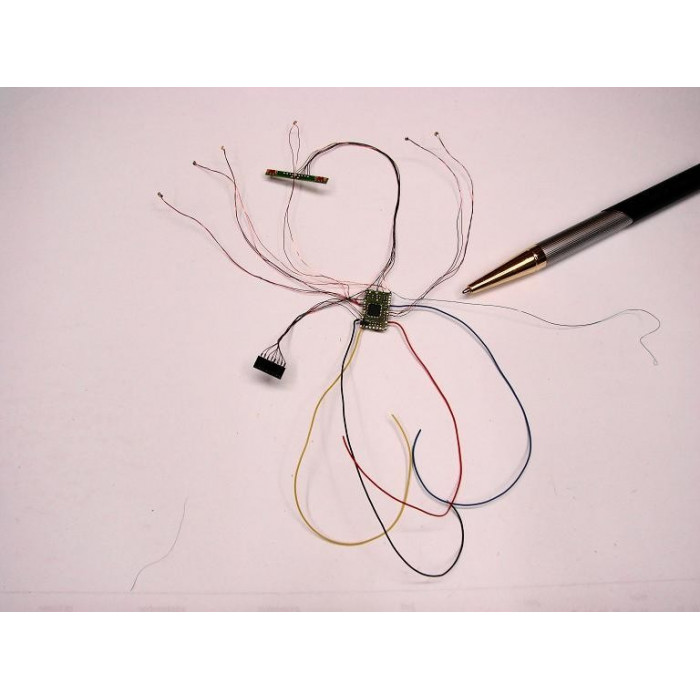

The set includes the following components:

The DC07-SI decoder board with integrated voltage converter and IR receiver

On the front:

• 2 Photo Transistors 0603 receivers for the Anti-Collision System
• 2 white LEDs for the headlights
• 2 yellow LEDs for the indicators

On the back on a small board:

• 2 Yellow LEDs for the indicators
• 2 red LEDs for brake lights
• 2 red LEDs for the rear lights
• 2 IR LEDs for Anti-Collision System

The parts are all connected by means of enamel wire. A test drive can therefore can be made quickly.

If options are recommended:

For addressing the built-in automatic function:

HG1 Hall sensor (for installation in the lorry) and 2x magnet 5x3 mm (for installation in the street)

and/or

A function module with IR LEDs for lighting control, direction and speed,

and / or

DCC system with Progset: IR LEDs for controlling the vehicle by DCC station or by PC software.

whether

DCC central DC-Car Booster with IR LEDs for long-distance control over several meters with optional PC control, the LCIR is needed in the veehicle.

whether

PC Transmittor with IR LEDs for long-distance control over several meters directly from a PC, the LCIR is needed in the vehice.

The wiring diagrams can be found here:  Aansluitingen.pdf
