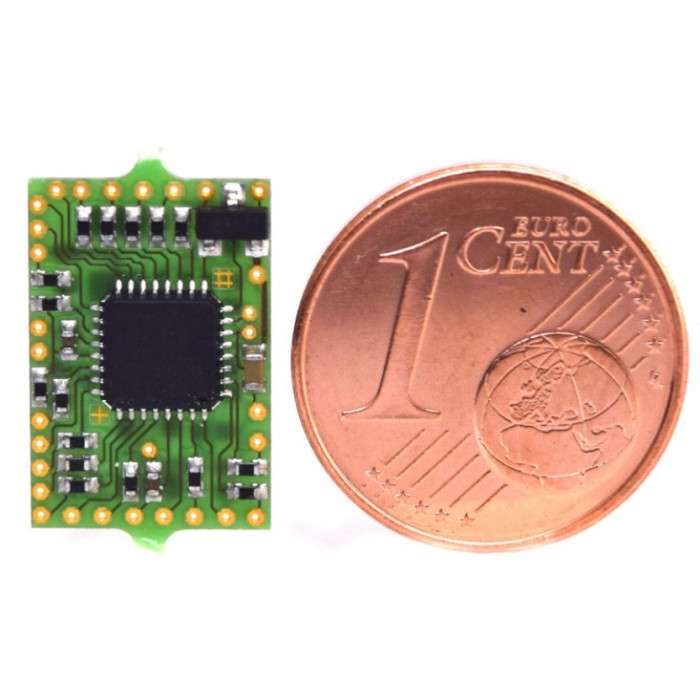

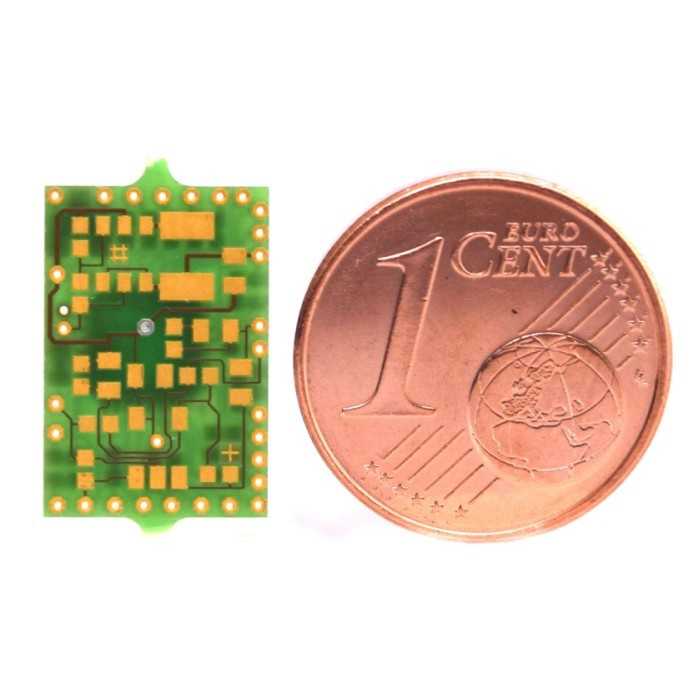

DC10

€42.00
Tax included

DC07 basic decoder without IR amplifier and voltage convertor

The decoder does not have its own voltage converter and no infrared amplifier on board and is therefore very attractively priced. However, this means that no IR sensors can be connected and thou the anti collision system is not available .

This decoder is intended for the following situations:

1. As a car decoder in moving cars (only computer controlled).

This requires the optional LCIR IR receiver. Control can only take place via the DC-Car Booster.

Control by Function module, remote control or by short-range IR is not possible.

2. Connected as a slave decoder to a DC010I or SI

This gives you access to even more (light) outputs.

3. As a decoder for stationary objects with animation.

This provides objects with lighting functions and animations by means of. max. 2 servos to be connected. You can think of stationary vehicles but also (moving and flying (battery powered)) planes or helicopters. The decoder is connected to a direct voltage of 3.6 - 5 Volts. The control is via a DCC central unit with a resistance of 150 KOhm at the IR input or via an optional LCIR so that the decoder can be operated wireless via a DCC central unit over a distance of max. 7 meters.

The light and servo functions are the same as the standard DC07-SI.

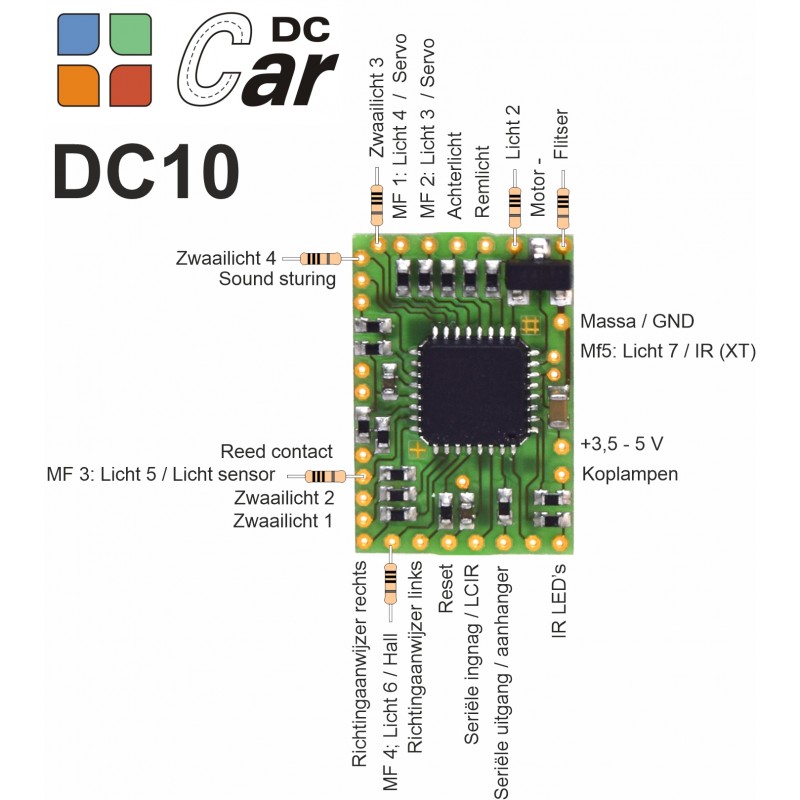

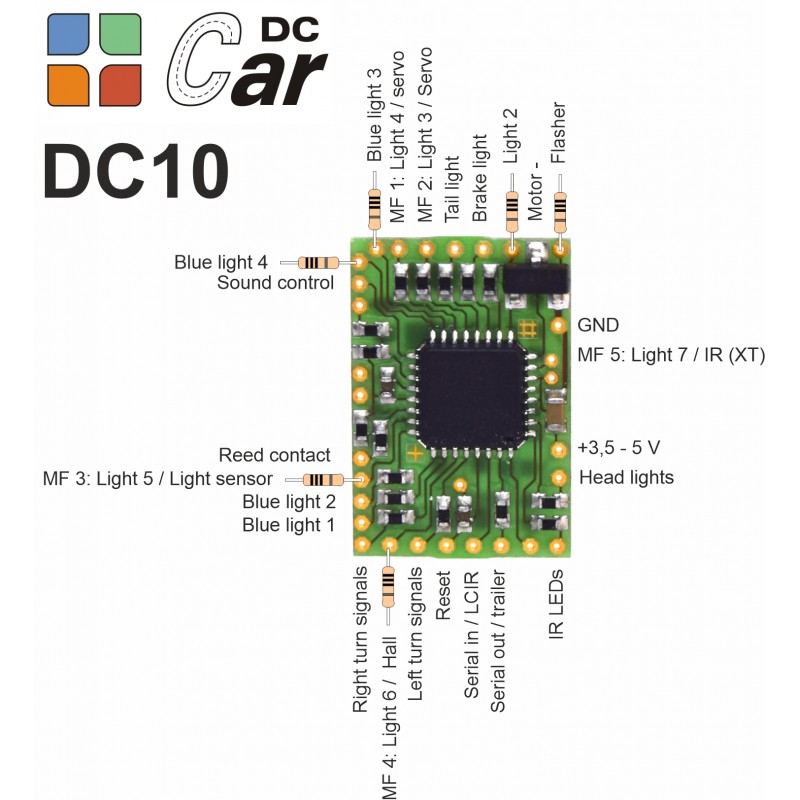

You can find the connection diagram here:  Aansluitingen.pdf
