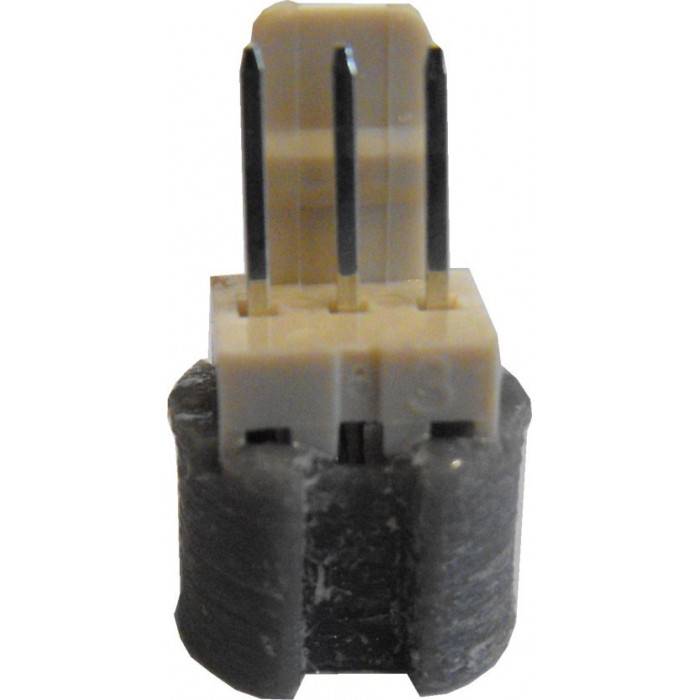

Hall sensor for feedback with magnetic wire


Hallsensor  (Part number: 10100)

New design: easier to implement.

Potted Hall sensor with high sensitivity, for integration in the Street System.

The sensitivity is so high that it generates a reliable feedback also with little tug magnets of passenger cars, even with floating tug !!!

Installation is simple by drilling a hole of 10mm.

You find the user manual her: User manual Hall-2017.pdf

Operating Hall Sensors
Voltage: 5-21V DC

Current: 1,5 - 3 mA

Output: Open collector

Max. Switching Current: 100mA to ground
Diameter: 10mm
Connection: 3 wire plug (as set, needs to be assembled)
