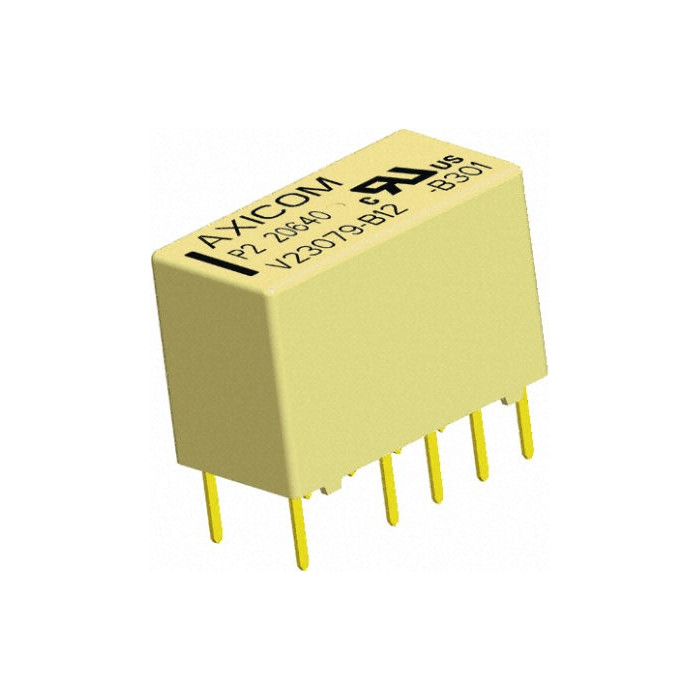

Memory relais 5 Volt

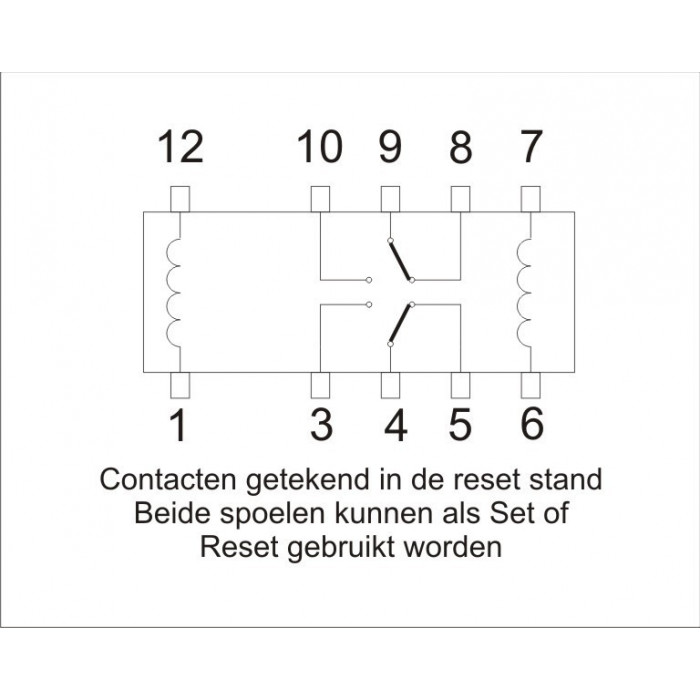

Memory relay with twin coils. A pulse on the one coil sets the relay to a pulse on the other switch off the relay. The low current (28 mA), this relay can also be switched via reed contacts.

specifications:

Voltage: 5 V =

Contacts: 2x changeover

Max. Current: 2 A

Coil Resistance: 178 Ohm

Mounting: print

Dimensions: 14,5 x 7,2 x 9,8 (L x W x H) mm
