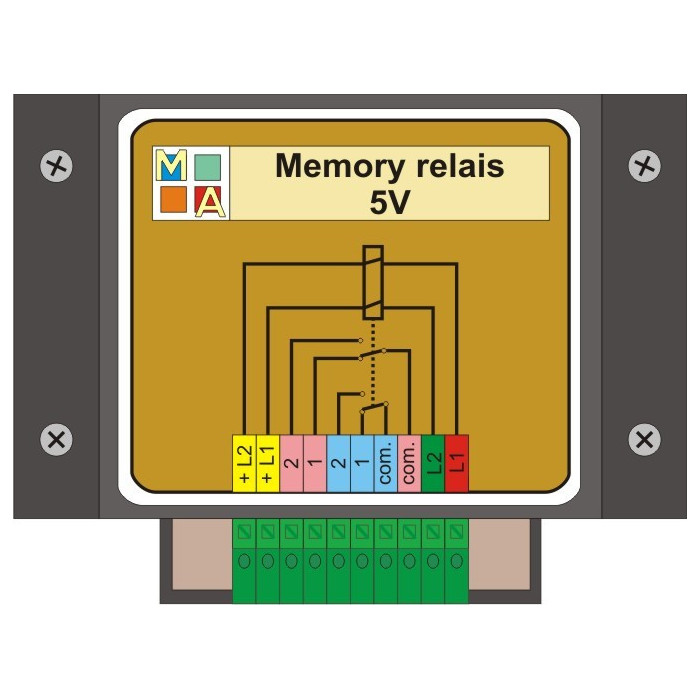

Memory relais 5 Volt in housing

Memory relay with double coils in a housing and provided with convenient self-locking contacts. A pulse on the one coil sets the relay to a pulse on the other switch off the relay. Because of the low power relay can also be switched via reed switches, Hall sensors, etc.

specifications:

Voltage: 5 V =

Contacts: 2x changeover

Max. Current: 2 A

Coil Resistance: 167 Ohm

Connections: self terminal contacts
