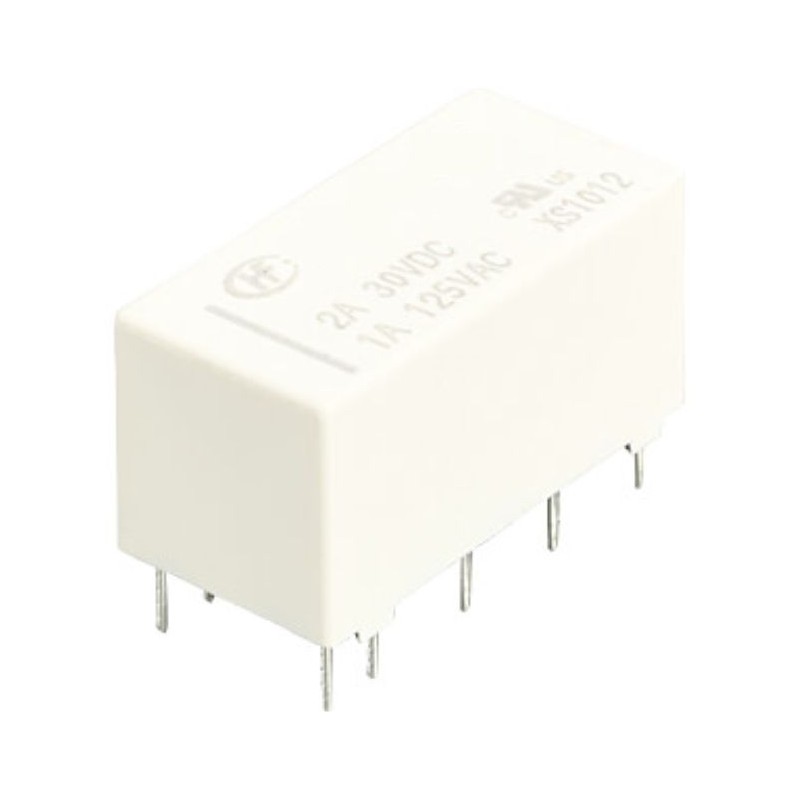

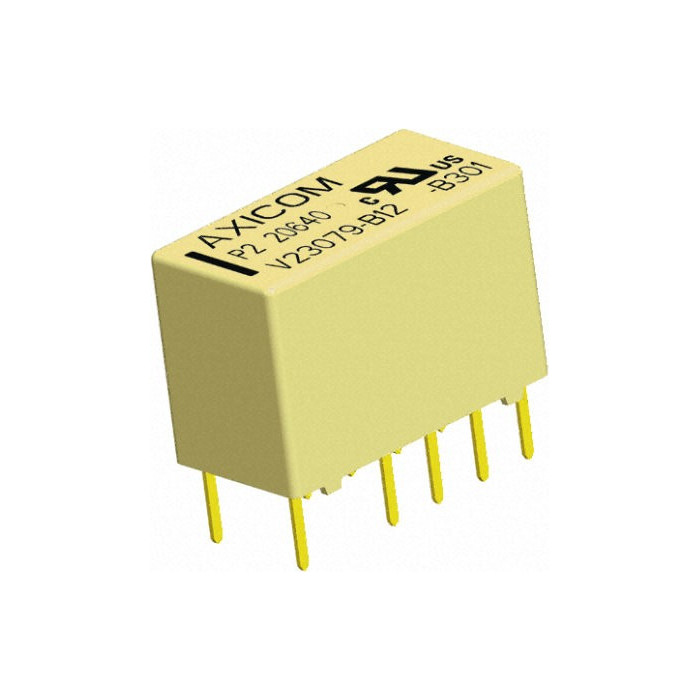

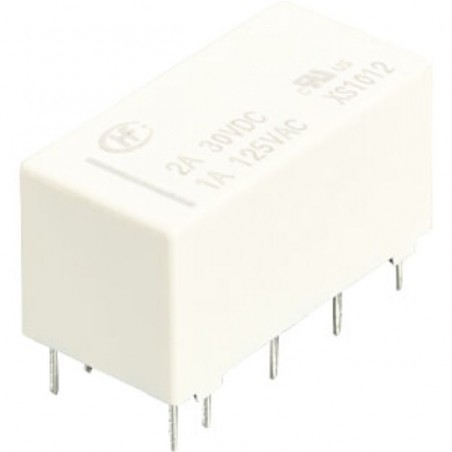

Memory relais 12V

Memory relay with twin coils. A pulse on the one coil sets the relay, a pulse on the other switch off the relay. The low current (12 mA) makes that this relay can also be switched via reed contacts.

specifications:

Voltage: 12 V =

Contacts: 2x changeover

Max. Current: 2 A

Coil Resistance: 1000 Ohm

Mounting: print

Dimensions: 14.5 x 7.2 x 9.8 (L x W x H) mm
