Built and tested

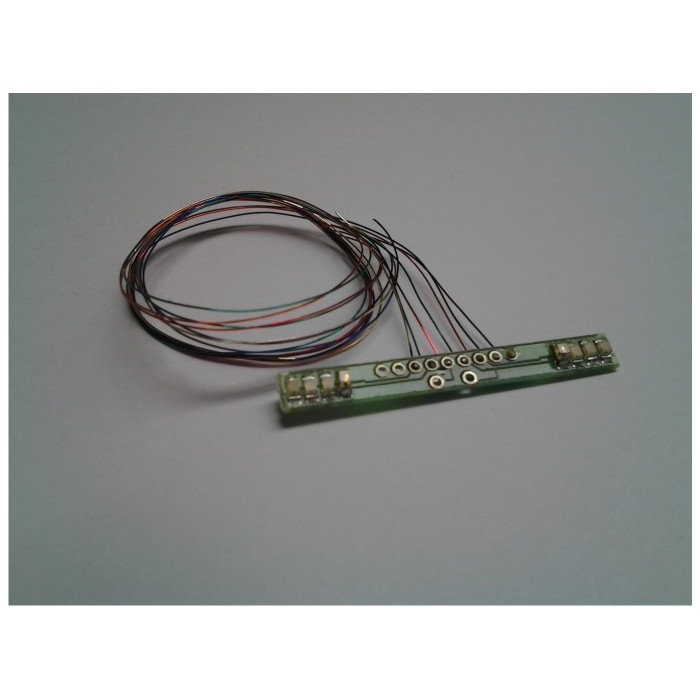

Lighting bar wide, wired
26 mm wide, with wires and LEDs
Lighting bar with IR LEDs, ready and wired for use with DC-Car decoders with Anti Collision System.
The eight LEDs are distributed as follows at the bar:
Yellow Red Red IR - IR Red Red Yellow
Size: 26x3 mm thickness 0.5mm Print
2 independently switchable yellow turn signals, wires: orange right LED, yellow: left LED
2 red tail lights switched together, connecting wire: blue
2 red brake lights switched together, connecting wire: violet
2 IR LEDs switched independent, connecting wire: 2x green
Common plus lead wire: red
If the bar is not used with DC-Car decoders: always use serial resistors !!
The value of the resistors is dependent upon the voltage and the desired brightness, recommended are the following values:
2.4 Volts approximately 47-220 Ohm
3-5 ca. 220-1000 Volt Ohm
12-16Volt approximately 1kOhm-4.7 kilohms
For easy testing of the IR LEDs are separately connected. By DC-Car decoders however, they are connected together.
