Lighting bar narrow, wired
23 mm, for oldtimer, wired

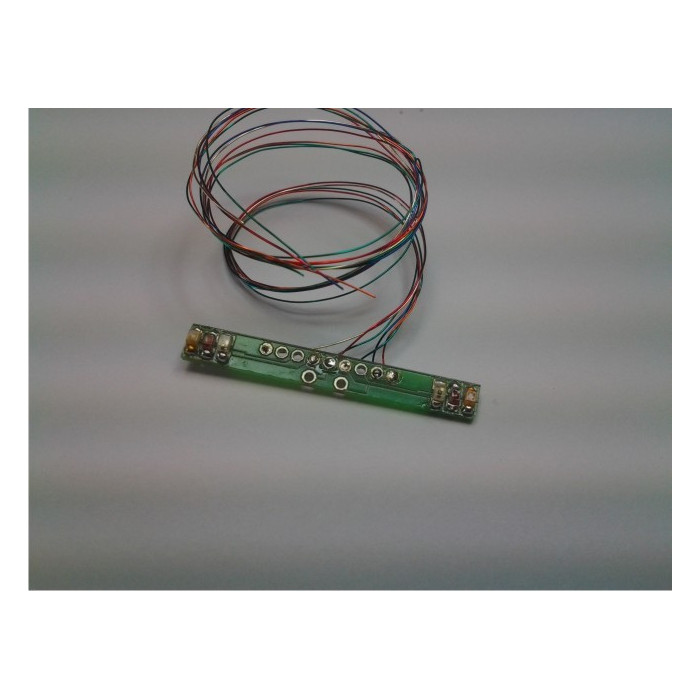

Lighting bar with IR LEDs, ready and wired for use with DC-Car decoders with Anti Collision System.
The 6 LEDs are distributed as follows at the bar:
Yellow Red IR - IR Red Yellow
Size: 23 x 3 mm thickness 0.5mm Print
2 independently switchable yellow turn signals, wires: orange right, left yellow
2 red tail / brake lights switched joint, connecting wire: blue
2 IR LEDs switched independetly, connecting wire: 2x green
Common plus lead wire: red
If the beam is not used with DC-Car decoders are always ballast resistors needed !!
The value of the resistors is dependent upon the voltage and the desired brightness, recommended are the following values:
2.4 Volts approximately 47-220 Ohm
3-5 ca. 220-1000 Volt Ohm
12-16Volt approximately 1kOhm-4.7 kilohms
For easy testing of the IR LEDs separately connected. By DC-Car decoders however, they are connected together.
