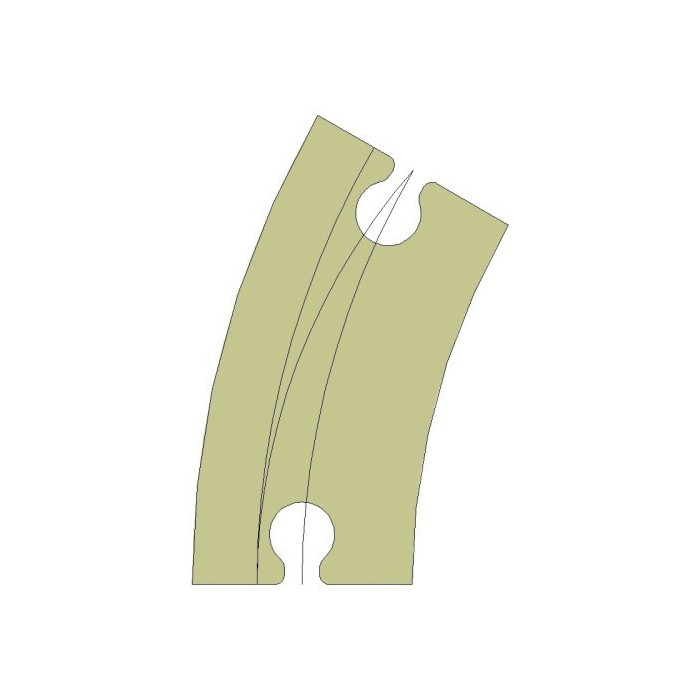

R4 Transision curve right 30º (R430_52)

Right transition curve 30º “R4” 333mm / 344mm

At this bend there is a gradient in the magnetic tape groove from the center to the outside of the bend. This segment is intended for the transition from curved segments to straight segments.

Angle: 30 degrees

Width: 52mm

Radius: R333mm / 344mm

Groove: 3mm in the middle and on the outside

Material: MDF

Consists of:

1 x curved segment

1 x coupler

With the Street System it is possible to construct single or multi-lane roads in a short time.

The principle is very simple, the standard segments are used by means of the supplied coupling pieces are clicked together, after which the magnetic tape is pressed into the groove. A first test drive can then already be made.

Download the tempate

For optimal planning, free templates can be downloaded in 1: 1 so that you can see exactly which segments you need at no cost in advance.
