R0 Transition curve 30º (R030_52)


"R0" 125mm / 136mm (Article number: R030_52)

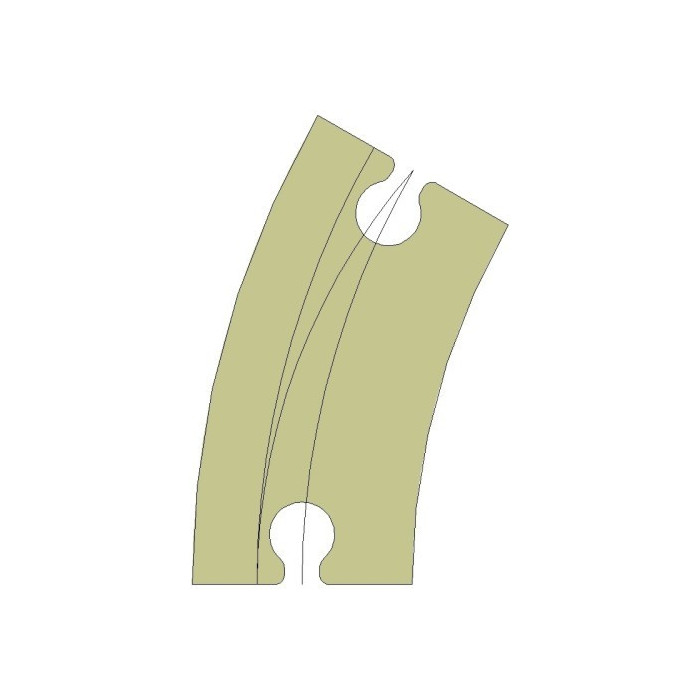

Transition curve right 30º “R0” 125mm / 136mm

Single lane exit bend with grooves in two radie for HO scale, 52mm road surface width.

At this bend there is a gradient in the magnetic tape groove from the outside to the center of the bend. This segment is intended for the transition from curved segments to straight segments.

Angle: 30 degrees

Width: 52mm

Radius: R125mm / 136mm

Groove: 3mm in the middle and on the outside

Material: MDF

Consists of:

1 x curved segment

1 x coupler

With the Street System it is possible to construct single or multi-lane roads in a short time.

The principle is very simple, the standard segments are used by means of the supplied coupling pieces are clicked together, after which the magnetic tape is pressed into the groove. A first test drive can then already be made.

For optimal planning, free templates can be downloaded in 1: 1 so that you can see exactly which segments you need at no cost in advance.

Download the template
