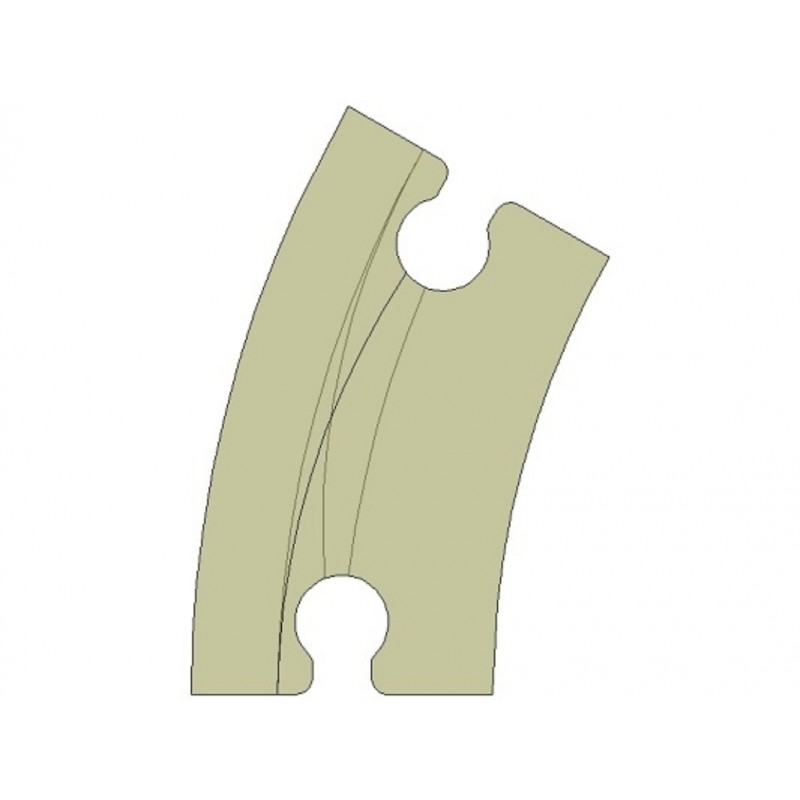

R2 Transition curve left and right 30º (R240_52)

Single lane standard transition curve left and right with two radie grooves for 52mm system.

Angle: 30 degrees

Width: 52mm

Radius: R229mm / R240mm (R2)

Groove: 3mm in the middle and on the outside

Material: MDF

Consists of:

1 x curved segment

1 x coupler

With the Street System it is possible to construct single or multi-lane roads in a short time.

The principle is very simple, the standard segments are used by means of the supplied coupling pieces are clicked together, after which the magnetic tape is pressed into the groove. A first test drive can then already be made.

For optimal planning, free templates can be downloaded in 1: 1 so that you can see exactly which segments you need at no cost in advance.

Download the template
