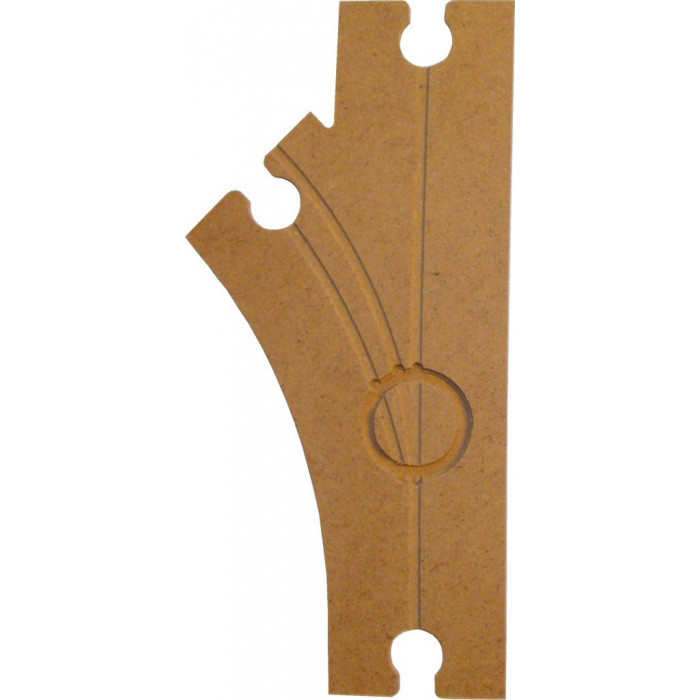

A210_44
Split to the left.
Magnetic tape diameter: 210 mm
outside diameter: 219 mm
Angle: 45 degrees
Length: 144 mm
Junction servo 52mm and...
