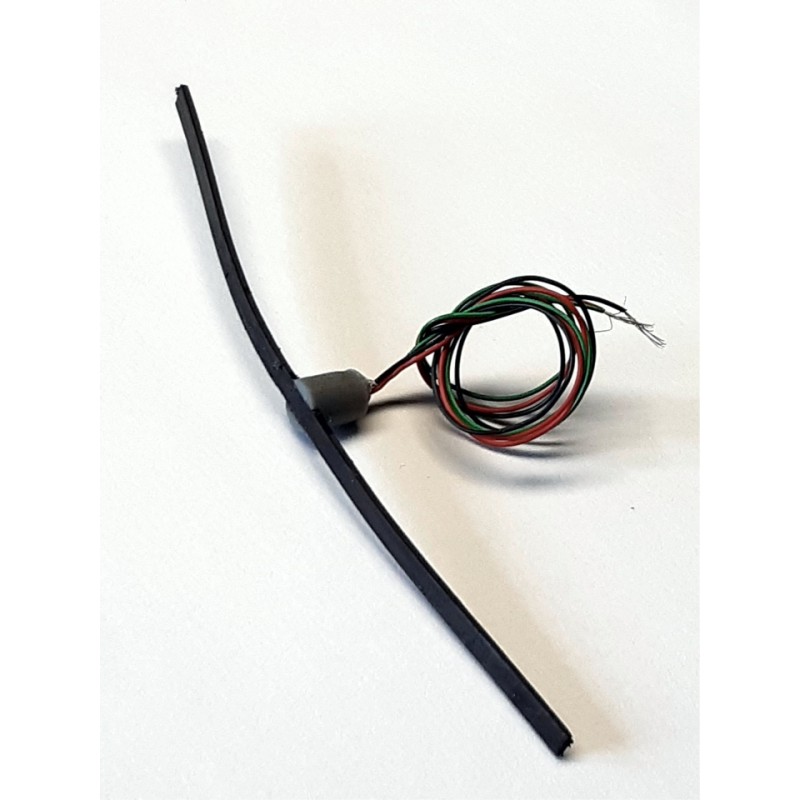

Hall sensor for feedback with magnetic wire

This highly sensitive hall sensor. with magnetic tape makes interruption of the magnetic tape unnecessary.

As a result, the guidance of the vehicles is better guaranteed, especially in the bends. The "flapping" of the tug on the road surface is also prevented.

The sensitivity is so high that even the small pick-up magnets of passenger cars generate a reliable feedback, even with a floating pick-up!!!

Installation is easy by drilling a 6mm hole. Allow the ends of the magnetic tape to run downwards at the ends so that a smooth magnetic field is created on the "weld". To do this, drill a 3.5 mm hole where the magnetic tapes come together.

Voltage: 2.7-26Vdc

Power Consumption: 4mA

Output: open collector

max. switching current: 20mA to ground

Diameter: 6mm

Magnetic tape length: 10 cm

Connection: 3 wires: red black and green

Length of connecting wires: 20cm
