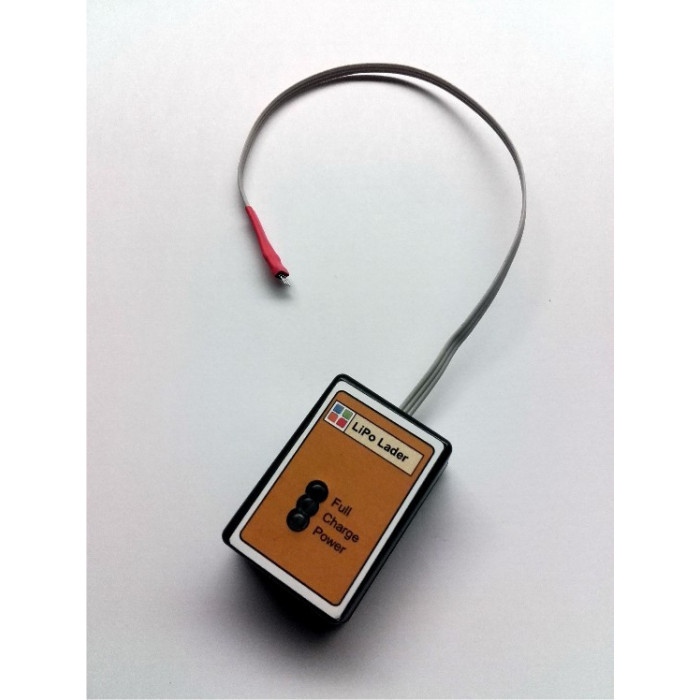

LiPo charger 90 mAh

Special quick charger for single cell (3.7V) LiPo batteries with a capacity of 90 mAh.

The LiPo battery is charged in a controlled manner: first a precharge depending on the load condition, then a fast charge follows until the battery is full. The fully charged battery is kept in shape with the so-called maintenance or trickel charge.

The charger has a mini USB connection for power.
Power is suplied via Mini USB port (no data transfer) and can be done:

1. AC power adapter with mini USB connector (see accessories)
2. USB devices such as a PC, Laptop, USB hub, etc.
3. When "mobile" solution without mains power connection: special battery holder for larger NiMH battery (LiPo battery is then charged with this from a much heavier NiMH battery)

Voltage 3.7V
Capacity: 90mAh
Charging time: approx. 1 hour (depending on battery condition)
Indications:

Red LED: battery connected, charging process has started

Yellow LED: Battery is charging

Green charging is finished

Connection: fixed cable with 3 pin LiPo charger plug with a pitch of 1,27mm (it prevents accidentally connection to a standard Faller charging socket (3 pin, 2.54mm))

NOTE: LiPo batteries can be charged only with a suitable LiPo charger. The charger must be adapted to the capacity of the battery! (Risco fire or explosion itself)

LiPo batteries can NOT be charged using the standard Faller charger . (As a result, the charger is equipped with a different plug).

LiPo batteries should never be discharged completely! For DC-Car decoders, the battery monitor in the decoder, must therefore be switched on and set correctly.

The charger is upon request also available for other battery capacities.
