Adjustable motor / speedcontroller

This controller is an adjustable power supply for small DC motors (direct current). With this circuit board, for example, the speed of Car System vehicles can be adjusted. Depending on the vehicle type, the driving speed can be reduced individually. Finally, tractors, construction machines or even trucks and buses drive at a realistic speed. However, the EMG is also very suitable for controlling speeds/revolutions.

Whether it is the revolutions of a wind turbine, a radar motor on a ship model or the fan of an RC truck.

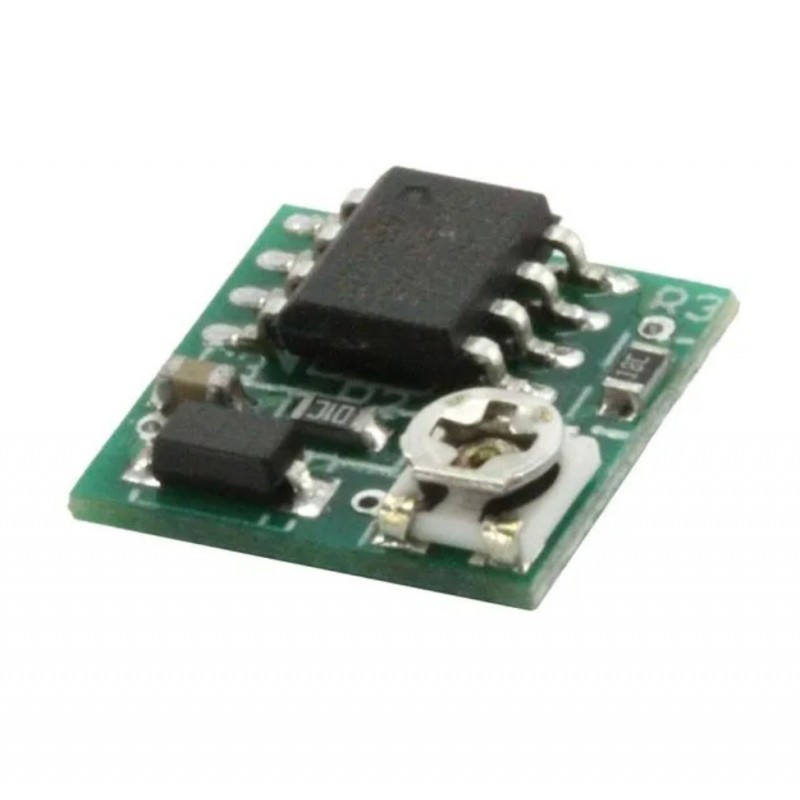

Due to its small dimensions, this circuit board can find a place almost anywhere. The input voltage is 2.3 to 6 V. The motor is connected directly on the output side. The output voltage can now be adjusted via the small trim potentiometer using a fine screwdriver. This controller can handle peak currents of up to 1 A and a continuous current of 500 mA.

TECHNICAL DATA:

- Supply voltage: 2.3 to 6 V

- Output voltage: 1 to ~6 V

- Continuous current: 500 mA

- Peak current: 1 A max

- Weight: 0.4 g

- Dimensions (mm): 10 x 10 mm
